Y-bearing short base plummer block units SYFWK 30 LTHR

Bearing number : SYFWK 30 LTHR

Size (mm) : 30x43x28

Brand : SKF

Bore Diameter (mm) : 30

Outer Diameter (mm) : 43

Width (mm) : 28

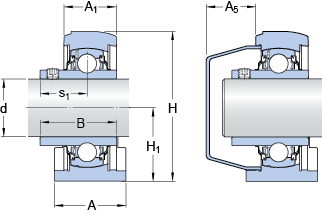

Bearing dimensions and specification in SKF catalogue:

d - 30 mm

A - 43 mm

A1 - 28 mm

B - 38.1 mm

H - 84 mm

H1 - 42.9 mm

J - 76.2 mm

L - 101 mm

s1 - 22.2 mm

Basic dynamic load rating - C - 16.3 kN

Basic static load rating - C0 - 11.2 kN

Fatigue load limit - Pu - 0.475 kN

Limiting speed - 3800 r/min

Calculation factor - f0 - 14

Weight - 0.52 kg

Size thread - G - M10

Thread length - G1 - 12 mm

Hexagonal key size for grub screw - H - 3 mm

Recommended tightening torque for grub screw - 4 N·m

Housing - SYFWK 506 L

Bearing - YAR 206-2RFGR/HV

End cover - ECL 206
