Y-bearing short base plummer block units SYFWK 3/4 LTA

Bearing number : SYFWK 3/4 LTA

Size (mm) : 19.05x35x24

Brand : SKF

Bore Diameter (mm) : 19,05

Outer Diameter (mm) : 35

Width (mm) : 24

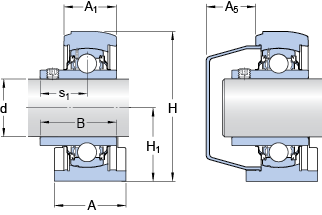

Bearing dimensions and specification in SKF catalogue:

d - 19.05 mm

A - 35 mm

A1 - 24 mm

B - 31 mm

H - 66 mm

H1 - 33.3 mm

J - 50.8 mm

L - 73 mm

s1 - 18.3 mm

Basic dynamic load rating - C - 12.7 kN

Basic static load rating - C0 - 6.6 kN

Fatigue load limit - Pu - 0.28 kN

Limiting speed - 5000 r/min

Calculation factor - f0 - 13

Weight - 0.27 kg

Size thread - G - M8

Thread length - G1 - 12 mm

Hexagonal key size for grub screw - H - 3.175 mm

Recommended tightening torque for grub screw - 4 N·m

Housing - SYFWK 504 L

Bearing - YAR 204-012-2RF/VE495

End cover - ECL 204
