Y-bearing short base plummer block units SYFWK 25 LTHR

Bearing number : SYFWK 25 LTHR

Size (mm) : 25x40x25.5

Brand : SKF

Bore Diameter (mm) : 25

Outer Diameter (mm) : 40

Width (mm) : 25,5

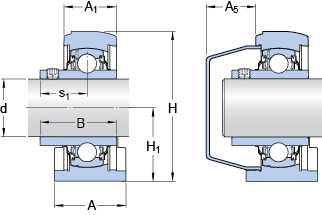

Bearing dimensions and specification in SKF catalogue:

d - 25 mm

A - 40 mm

A1 - 25.5 mm

B - 34.1 mm

H - 73.5 mm

H1 - 36.5 mm

J - 50.8 mm

L - 76 mm

s1 - 19.8 mm

Basic dynamic load rating - C - 11.9 kN

Basic static load rating - C0 - 7.8 kN

Fatigue load limit - Pu - 0.335 kN

Limiting speed - 4300 r/min

Calculation factor - f0 - 14

Weight - 0.33 kg

Size thread - G - M10

Thread length - G1 - 12 mm

Hexagonal key size for grub screw - H - 3 mm

Recommended tightening torque for grub screw - 4 N·m

Housing - SYFWK 505 L

Bearing - YAR 205-2RFGR/HV

End cover - ECL 205
