Y-bearing short base plummer block units SYFWK 1.7/16 LTHR

Bearing number : SYFWK 1.7/16 LTHR

Size (mm) : 36.512x48x32.5

Brand : SKF

Bore Diameter (mm) : 36,512

Outer Diameter (mm) : 48

Width (mm) : 32,5

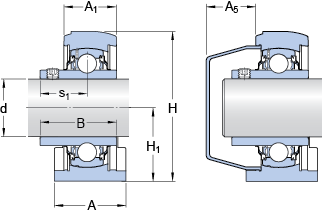

Bearing dimensions and specification in SKF catalogue:

d - 36.512 mm

A - 48 mm

A1 - 32.5 mm

B - 42.9 mm

H - 95 mm

H1 - 47.6 mm

J - 82.6 mm

L - 110 mm

s1 - 25.4 mm

Basic dynamic load rating - C - 21.6 kN

Basic static load rating - C0 - 15.3 kN

Fatigue load limit - Pu - 0.655 kN

Limiting speed - 3200 r/min

Calculation factor - f0 - 14

Weight - 0.7 kg

Size thread - G - M10

Thread length - G1 - 12 mm

Hexagonal key size for grub screw - H - 3.969 mm

Recommended tightening torque for grub screw - 6.5 N·m

Housing - SYFWK 507 L

Bearing - YAR 207-107-2RFGR/HV

End cover - ECL 207
