Bearing number : SYFWK 1.3/16 LTA
Size (mm) : 30.163x43x28
Brand : SKF
Bore Diameter (mm) : 30,163
Outer Diameter (mm) : 43
Width (mm) : 28

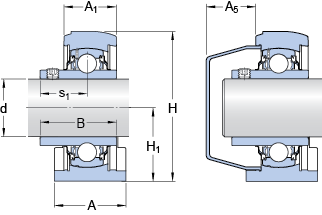

d - 30.163 mm
A - 43 mm
A1 - 28 mm
B - 38.1 mm
H - 84 mm
H1 - 42.9 mm
J - 76.2 mm
L - 101 mm
s1 - 22.2 mm
Basic dynamic load rating - C - 19.5 kN
Basic static load rating - C0 - 11.2 kN
Fatigue load limit - Pu - 0.475 kN
Limiting speed - 3800 r/min
Calculation factor - f0 - 14
Weight - 0.52 kg
Size thread - G - M10
Thread length - G1 - 12 mm
Hexagonal key size for grub screw - H - 3.175 mm
Recommended tightening torque for grub screw - 4 N·m
Housing - SYFWK 506 L
Bearing - YAR 206-103-2RF/VE495
End cover - ECL 206
