Y-bearing short base plummer block units SYFWK 1.15/16 LTA

Bearing number : SYFWK 1.15/16 LTA

Size (mm) : 49.213x54x37.5

Brand : SKF

Bore Diameter (mm) : 49,213

Outer Diameter (mm) : 54

Width (mm) : 37,5

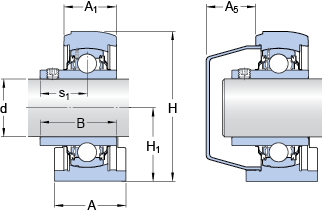

Bearing dimensions and specification in SKF catalogue:

d - 49.213 mm

A - 54 mm

A1 - 37.5 mm

B - 51.6 mm

H - 115 mm

H1 - 57.2 mm

J - 101.6 mm

L - 135 mm

s1 - 32.6 mm

Basic dynamic load rating - C - 35.1 kN

Basic static load rating - C0 - 23.2 kN

Fatigue load limit - Pu - 0.98 kN

Limiting speed - 2200 r/min

Calculation factor - f0 - 14

Weight - 1.25 kg

Size thread - G - M16

Thread length - G1 - 23.5 mm

Hexagonal key size for grub screw - H - 4.762 mm

Recommended tightening torque for grub screw - 16.5 N·m

Housing - SYFWK 510 L

Bearing - YAR 210-115-2RF/VE495

End cover - ECL 210
