Y-bearing short base plummer block units SYFWK 1.1/2 LTHR

Bearing number : SYFWK 1.1/2 LTHR

Size (mm) : 38.1x48x35

Brand : SKF

Bore Diameter (mm) : 38,1

Outer Diameter (mm) : 48

Width (mm) : 35

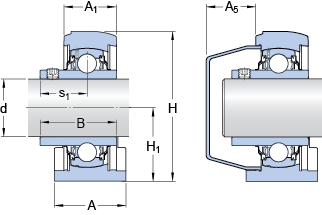

Bearing dimensions and specification in SKF catalogue:

d - 38.1 mm

A - 48 mm

A1 - 35 mm

B - 49.2 mm

H - 100.5 mm

H1 - 49.2 mm

J - 88.9 mm

L - 120 mm

s1 - 30.2 mm

Basic dynamic load rating - C - 26 kN

Basic static load rating - C0 - 19 kN

Fatigue load limit - Pu - 0.8 kN

Limiting speed - 2800 r/min

Calculation factor - f0 - 14

Weight - 0.96 kg

Size thread - G - M12

Thread length - G1 - 16 mm

Hexagonal key size for grub screw - H - 3.969 mm

Recommended tightening torque for grub screw - 6.5 N·m

Housing - SYFWK 508 L

Bearing - YAR 208-108-2RFGR/HV

End cover - ECL 208
