Y-bearing short base plummer block units SYFJ 50 TF

Bearing number : SYFJ 50 TF

Size (mm) : 50x60x36

Brand : SKF

Bore Diameter (mm) : 50

Outer Diameter (mm) : 60

Width (mm) : 36

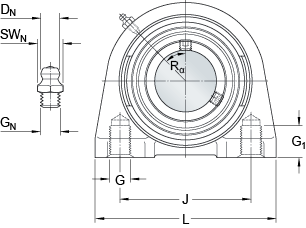

Bearing dimensions and specification in SKF catalogue:

d - 50 mm

A - 60 mm

A1 - 36 mm

B - 51.6 mm

H - 116.5 mm

H1 - 57.2 mm

H2 - 14 mm

J - 94 mm

L - 130 mm

s1 - 32.6 mm

DN - 6.5 mm

SWN - 7 mm

GN - 1/4-28 SAE-LT

RG - 1/4-28 UNF

R1 - 3.5 mm

Rα - 45 °

Basic dynamic load rating - C - 35.1 kN

Basic static load rating - C0 - 23.2 kN

Fatigue load limit - Pu - 0.98 kN

Limiting speed - 4000 r/min

Calculation factor - f0 - 14

Weight - 2.25 kg

Housing thread for attachment bolts - G - M16

Thread length - G1 - 25 mm

Hexagonal key size for grub screw - H - 5 mm

Recommended tightening torque for grub screw - 16.5 N·m

Housing - SYFJ 510

Bearing - YAR 210-2F
