Y-bearing short base plummer block units SYFJ 40 TF

Bearing number : SYFJ 40 TF

Size (mm) : 40x54x32

Brand : SKF

Bore Diameter (mm) : 40

Outer Diameter (mm) : 54

Width (mm) : 32

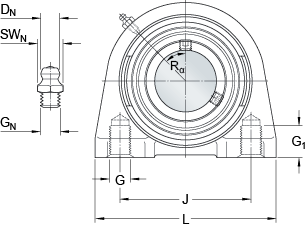

Bearing dimensions and specification in SKF catalogue:

d - 40 mm

A - 54 mm

A1 - 32 mm

B - 49.2 mm

H - 100.5 mm

H1 - 49.2 mm

H2 - 12 mm

J - 84 mm

L - 116 mm

s1 - 30.2 mm

DN - 6.5 mm

SWN - 7 mm

GN - 1/4-28 SAE-LT

RG - 1/4-28 UNF

R1 - 3.5 mm

Rα - 45 °

Basic dynamic load rating - C - 30.7 kN

Basic static load rating - C0 - 19 kN

Fatigue load limit - Pu - 0.8 kN

Limiting speed - 4800 r/min

Calculation factor - f0 - 14

Weight - 1.55 kg

Housing thread for attachment bolts - G - M14

Thread length - G1 - 20 mm

Hexagonal key size for grub screw - H - 4 mm

Recommended tightening torque for grub screw - 6.5 N·m

Housing - SYFJ 508

Bearing - YAR 208-2F
