Y-bearing short base plummer block units SYFJ 35 TF

Bearing number : SYFJ 35 TF

Size (mm) : 35x48x31

Brand : SKF

Bore Diameter (mm) : 35

Outer Diameter (mm) : 48

Width (mm) : 31

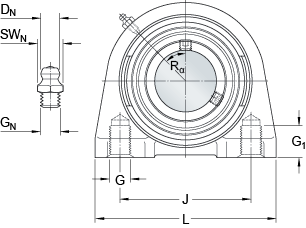

Bearing dimensions and specification in SKF catalogue:

d - 35 mm

A - 48 mm

A1 - 31 mm

B - 42.9 mm

H - 95.5 mm

H1 - 47.6 mm

H2 - 12 mm

J - 80 mm

L - 110 mm

s1 - 25.4 mm

DN - 6.5 mm

SWN - 7 mm

GN - 1/4-28 SAE-LT

RG - 1/4-28 UNF

R1 - 3 mm

Rα - 45 °

Basic dynamic load rating - C - 25.5 kN

Basic static load rating - C0 - 15.3 kN

Fatigue load limit - Pu - 0.655 kN

Limiting speed - 5300 r/min

Calculation factor - f0 - 14

Weight - 1.35 kg

Housing thread for attachment bolts - G - M14

Thread length - G1 - 20 mm

Hexagonal key size for grub screw - H - 3 mm

Recommended tightening torque for grub screw - 4 N·m

Housing - SYFJ 507

Bearing - YAR 207-2F
