Y-bearing plummer block units SY 1.1/8 FM

Bearing number : SY 1.1/8 FM

Size (mm) : 28.575x40x25

Brand : SKF

Bore Diameter (mm) : 28,575

Outer Diameter (mm) : 40

Width (mm) : 25

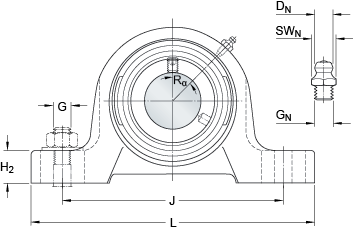

Bearing dimensions and specification in SKF catalogue:

d - 28.575 mm

A - 40 mm

A1 - 25 mm

B1 - 35.7 mm

H - 83.5 mm

H1 - 42.9 mm

H2 - 17 mm

J - 117.5 mm

J - max. - 127 mm

J - min. - 108 mm

L - 152 mm

H - 23.5 mm

N1 - 14 mm

s1 - 26.7 mm

J6 - 140 mm

J7 - 14 mm

N4 - 3 mm

DN - 6.579 mm

SWN - 11.112 mm

GN - 1/8-27 NPT

RG - 1/8-27 NPT

R1 - 1.5 mm

Rα - 45 °

Basic dynamic load rating - C - 19.5 kN

Basic static load rating - C0 - 11.2 kN

Fatigue load limit - Pu - 0.475 kN

Limiting speed - 6300 r/min

Weight - 1.15 kg

Hexagonal key size for grub screw - H - 3.969 mm

Recommended tightening torque for grub screw - 6.5 N·m
