Radial spherical plain bearings SIQG20ES

Bearing number : SIQG20ES

Brand : SKF

Bore Diameter (mm) : 20

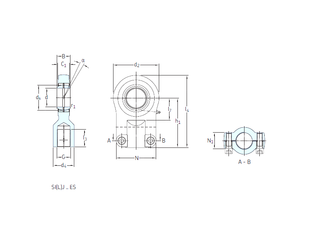

Bearing dimensions and specification in SKF catalogue:

d - 20 mm

d2 - 48 mm

d4 max. - 26,5 mm

dk - 29 mm

h1 - 52 mm

l3 min. - 23 mm

l4 max. - 77 mm

l7 min. - 21 mm

r1 min. - 0,3 mm

B - 20 mm

C1 max - 17,5 mm

N max - 48 mm

N1 max - 18 mm

Thread (G) - M16x1,5 Tolerance 6H

Angle - 4 °

Weight - 0,4 Kg

Basic dynamic load rating (C) - 30 kN

Basic static load rating (C0) - 43 kN
