Radial spherical plain bearings SIQG 200 ES

Bearing number : SIQG 200 ES

Brand : SKF

Bore Diameter (mm) : 200

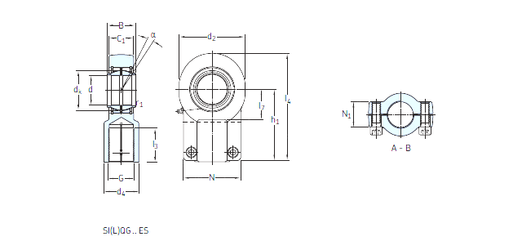

Bearing dimensions and specification in SKF catalogue:

d - 200 mm

d2 max. - 420 mm

d4 max. - 215 mm

dk - 250 mm

h1 - 390 mm

l3 min. - 161 mm

l4 max. - 623 mm

l7 min. - 193 mm

r1 min. - 1,1 mm

B - 200 mm

C1 max - 165 mm

N max - 323 mm

N1 max - 106 mm

Thread (G) - M 160x4 Tolerance 6H

Angle - 4 °

Weight - 165 Kg

Basic dynamic load rating (C) - 2 120 kN

Basic static load rating (C0) - 3 400 kN
