Radial spherical plain bearings SIQG 125 ES

Bearing number : SIQG 125 ES

Brand : SKF

Bore Diameter (mm) : 125

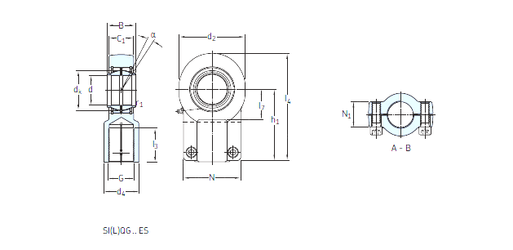

Bearing dimensions and specification in SKF catalogue:

d - 125 mm

d2 max. - 268 mm

d4 max. - 135 mm

dk - 160 mm

h1 - 260 mm

l3 min. - 113 mm

l4 max. - 407 mm

l7 min. - 118 mm

r1 min. - 1 mm

B - 125 mm

C1 max - 105 mm

N max - 202 mm

N1 max - 75 mm

Thread (G) - M 100x3 Tolerance 6H

Angle - 4 °

Weight - 43 Kg

Basic dynamic load rating (C) - 950 kN

Basic static load rating (C0) - 1 430 kN
