Radial spherical plain bearings SILR 80 ES

Bearing number : SILR 80 ES

Brand : SKF

Bore Diameter (mm) : 80

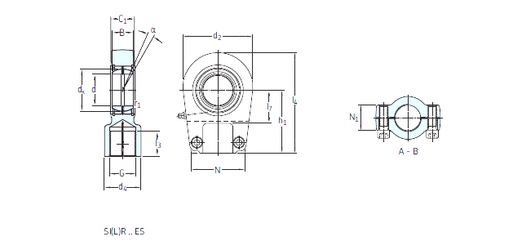

Bearing dimensions and specification in SKF catalogue:

d - 80 mm

d2 max. - 178 mm

d4 max. - 103,5 mm

dk - 105 mm

h1 - 170 mm

l3 min. - 81 mm

l4 max. - 267,5 mm

l7 min. - 79 mm

r1 min. - 1 mm

B - 55 mm

C1 max - 60,5 mm

N max - 126 mm

N1 max - 60,5 mm

Thread (G) - M 80x2 Tolerance 6H

Angle - 6 °

Weight - 13 Kg

Basic dynamic load rating (C) - 400 kN

Basic static load rating (C0) - 560 kN
