Radial spherical plain bearings SILQG 160 ES

Bearing number : SILQG 160 ES

Brand : SKF

Bore Diameter (mm) : 160

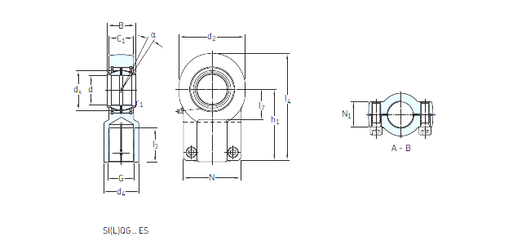

Bearing dimensions and specification in SKF catalogue:

d - 160 mm

d2 max. - 328 mm

d4 max. - 165 mm

dk - 200 mm

h1 - 310 mm

l3 min. - 126 mm

l4 max. - 490 mm

l7 min. - 148 mm

r1 min. - 1 mm

B - 160 mm

C1 max - 133 mm

N max - 252 mm

N1 max - 85 mm

Thread (G) - M 125x4 Tolerance 6H

Angle - 4 °

Weight - 80 Kg

Basic dynamic load rating (C) - 1 370 kN

Basic static load rating (C0) - 2 200 kN
