Bearing number : SILKB8F
Brand : SKF

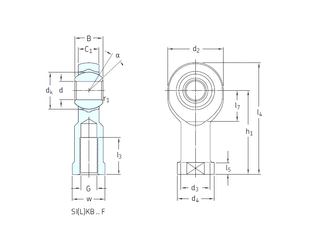

Bore Diameter (mm) : 8
d - 8 mm
d2 max. - 25 mm
d3 - 12,5 mm
d4 max. - 17 mm
dk - 15,8 mm
h1 - 36 mm
l3 min. - 12 mm
l4 max. - 49 mm
l5 - 5 mm
l7 min. - 12 mm
r1 min. - 0,3 mm
B - 12 mm
C1 max - 9 mm
w - 14 Tolerance h14
Thread (G) - M8 Tolerance 6H
Angle - 14 °
Weight - 0,047 Kg
Basic dynamic load rating (C) - 7,1 kN
Basic static load rating (C0) - 11,4 kN
