Radial spherical plain bearings SILKB5F

Bearing number : SILKB5F

Brand : SKF

Bore Diameter (mm) : 5

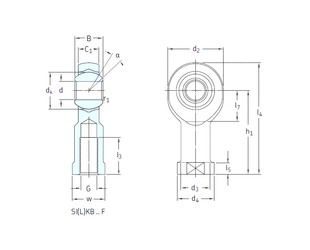

Bearing dimensions and specification in SKF catalogue:

d - 5 mm

d2 max. - 19 mm

d3 - 9 mm

d4 max. - 12 mm

dk - 11,1 mm

h1 - 27 mm

l3 min. - 8 mm

l4 max. - 37 mm

l5 - 4 mm

l7 min. - 9 mm

r1 min. - 0,3 mm

B - 8 mm

C1 max - 6 mm

w - 9 Tolerance h14

Thread (G) - M5 Tolerance 6H

Angle - 13 °

Weight - 0,019 Kg

Basic dynamic load rating (C) - 3,25 kN

Basic static load rating (C0) - 5,3 kN
