Bearing number : SILKB22F
Brand : SKF
Bore Diameter (mm) : 22

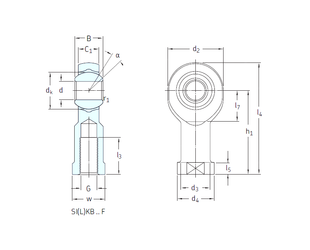

d - 22 mm
d2 max. - 55 mm
d3 - 30 mm
d4 max. - 40 mm
dk - 38,1 mm
h1 - 84 mm
l3 min. - 33 mm
l4 max. - 114 mm
l5 - 12 mm
l7 min. - 27 mm
r1 min. - 0,3 mm
B - 28 mm
C1 max - 20 mm
w - 32 Tolerance h14
Thread (G) - M22x1,5 Tolerance 6H
Angle - 15 °
Weight - 0,52 Kg
Basic dynamic load rating (C) - 38 kN
Basic static load rating (C0) - 61 kN
