Radial spherical plain bearings SILKB16F

Bearing number : SILKB16F

Brand : SKF

Bore Diameter (mm) : 16

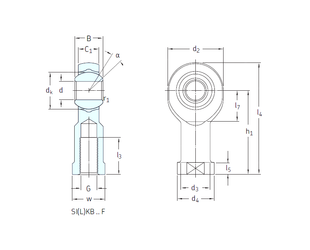

Bearing dimensions and specification in SKF catalogue:

d - 16 mm

d2 max. - 43 mm

d3 - 22 mm

d4 max. - 29 mm

dk - 28,5 mm

h1 - 64 mm

l3 min. - 24 mm

l4 max. - 86 mm

l5 - 8 mm

l7 min. - 21 mm

r1 min. - 0,3 mm

B - 21 mm

C1 max - 15 mm

w - 22 Tolerance h14

Thread (G) - M16 Tolerance 6H

Angle - 15 °

Weight - 0,23 Kg

Basic dynamic load rating (C) - 21,4 kN

Basic static load rating (C0) - 34,5 kN
