Radial spherical plain bearings SILKB10F

Bearing number : SILKB10F

Brand : SKF

Bore Diameter (mm) : 10

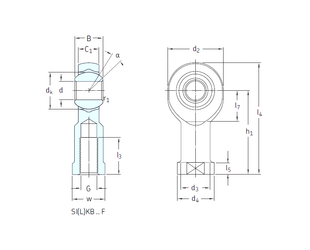

Bearing dimensions and specification in SKF catalogue:

d - 10 mm

d2 max. - 29 mm

d3 - 15 mm

d4 max. - 20 mm

dk - 19 mm

h1 - 43 mm

l3 min. - 15 mm

l4 max. - 58 mm

l5 - 6,5 mm

l7 min. - 14 mm

r1 min. - 0,3 mm

B - 14 mm

C1 max - 10,5 mm

w - 17 Tolerance h14

Thread (G) - M10 Tolerance 6H

Angle - 13 °

Weight - 0,079 Kg

Basic dynamic load rating (C) - 9,8 kN

Basic static load rating (C0) - 14,3 kN
