Radial spherical plain bearings SILKAC25M

Bearing number : SILKAC25M

Brand : SKF

Bore Diameter (mm) : 25

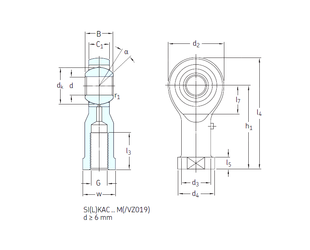

Bearing dimensions and specification in SKF catalogue:

d - 25 mm

d2 - 61 mm

d3 - 33,5 mm

d4 max. - 44 mm

dk - 42,8 mm

h1 - 94 mm

l3 min. - 36 mm

l4 max. - 127 mm

l5 - 12 mm

l7 min. - 30 mm

r1 min. - 0,3 mm

B - 31 mm

C1 - 23 mm

w - 36 Tolerance h14

Thread (G) - M24x2 Tolerance 6H

Angle - 15 °

Weight - 0,65 Kg

Basic dynamic load rating (C) - 47,5 kN

Basic static load rating (C0) - 53 kN
