Radial spherical plain bearings SILKAC14M

Bearing number : SILKAC14M

Brand : SKF

Bore Diameter (mm) : 14

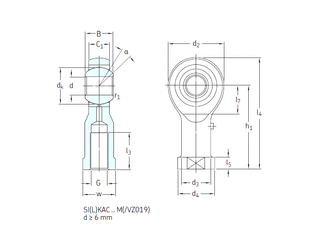

Bearing dimensions and specification in SKF catalogue:

d - 14 mm

d2 - 37 mm

d3 - 20 mm

d4 max. - 27 mm

dk - 25,4 mm

h1 - 57 mm

l3 min. - 21 mm

l4 max. - 77 mm

l5 - 8 mm

l7 min. - 18 mm

r1 min. - 0,3 mm

B - 19 mm

C1 - 14,5 mm

w - 22 Tolerance h14

Thread (G) - M14 Tolerance 6H

Angle - 16 °

Weight - 0,16 Kg

Basic dynamic load rating (C) - 17 kN

Basic static load rating (C0) - 20,4 kN
