Radial spherical plain bearings SILJ 80 ES

Bearing number : SILJ 80 ES

Brand : SKF

Bore Diameter (mm) : 80

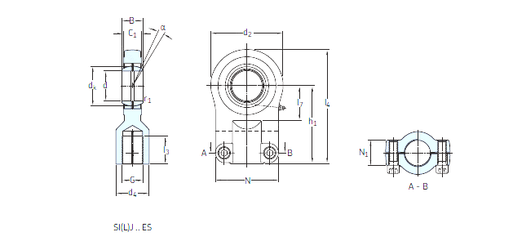

Bearing dimensions and specification in SKF catalogue:

d - 80 mm

d2 max. - 205 mm

d4 max. - 90 mm

dk - 105 mm

h1 - 185 mm

l3 min. - 64 mm

l4 max. - 287,5 mm

l7 min. - 92 mm

r1 min. - 1 mm

B - 55 mm

C1 max - 47 mm

N max - 156 mm

N1 max - 47 mm

Thread (G) - M 48x2 Tolerance 6H

Angle - 3 °

Weight - 14,5 Kg

Basic dynamic load rating (C) - 400 kN

Basic static load rating (C0) - 610 kN
