Radial spherical plain bearings SILJ 100 ES

Bearing number : SILJ 100 ES

Brand : SKF

Bore Diameter (mm) : 100

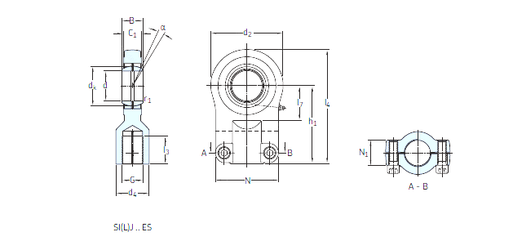

Bearing dimensions and specification in SKF catalogue:

d - 100 mm

d2 max. - 240 mm

d4 max. - 110 mm

dk - 130 mm

h1 - 240 mm

l3 min. - 86 mm

l4 max. - 360 mm

l7 min. - 116 mm

r1 min. - 1 mm

B - 70 mm

C1 max - 57 mm

N max - 190 mm

N1 max - 57 mm

Thread (G) - M 64x3 Tolerance 6H

Angle - 3 °

Weight - 29,5 Kg

Basic dynamic load rating (C) - 610 kN

Basic static load rating (C0) - 780 kN
