Radial spherical plain bearings SIL8E

Bearing number : SIL8E

Brand : SKF

Bore Diameter (mm) : 8

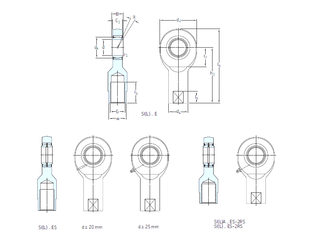

Bearing dimensions and specification in SKF catalogue:

d - 8 mm

d2 - 25 mm

d4 - 13 mm

dk - 13 mm

h1 - 36 mm

l3 min. - 15 mm

l4 max. - 50 mm

l5 - 9 mm

l7 min. - 11 mm

r1 min. - 0,3 mm

B - 8 mm

C1 max - 6,5 mm

w - 11 Tolerance h14

Thread (G) - M8 Tolerance 6H

Angle - 15 °

Weight - 0,036 Kg

Basic dynamic load rating (C) - 5,5 kN

Basic static load rating (C0) - 12,9 kN
