Radial spherical plain bearings SIL80ES-2RS

Bearing number : SIL80ES-2RS

Brand : SKF

Bore Diameter (mm) : 80

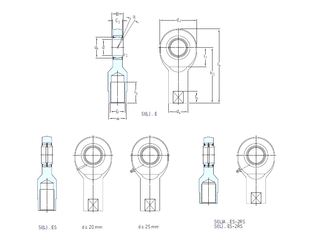

Bearing dimensions and specification in SKF catalogue:

d - 80 mm

d2 - 182 mm

d4 - 105 mm

dk - 105 mm

h1 - 295 mm

l3 min. - 85 mm

l4 max. - 389 mm

l5 - 45 mm

l7 min. - 98 mm

r1 min. - 1 mm

B - 55 mm

C1 max - 48 mm

w - 90 Tolerance h14

Thread (G) - M80x4 Tolerance 6H

Angle - 5 °

Weight - 19 Kg

Basic dynamic load rating (C) - 400 kN

Basic static load rating (C0) - 655 kN
