Radial spherical plain bearings SIL6C

Bearing number : SIL6C

Brand : SKF

Bore Diameter (mm) : 6

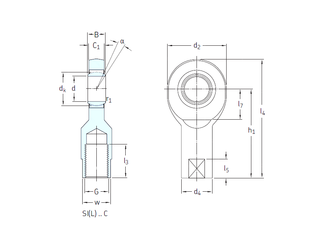

Bearing dimensions and specification in SKF catalogue:

d - 6 mm

d2 - 22 mm

d3 - 11 mm

d4 - 11 mm

dk - 10 mm

h1 - 30 mm

l4 max. - 43 mm

l5 - 8 mm

l7 min. - 10 mm

r1 min. - 0,3 mm

B - 6 mm

C1 max - 4,5 mm

w - 9 Tolerance h14

Thread (G) - M6 Tolerance 6H

Angle - 13 °

Weight - 0,023 Kg

Basic dynamic load rating (C) - 3,6 kN

Basic static load rating (C0) - 8,15 kN
