Radial spherical plain bearings SIL50ES-2RS

Bearing number : SIL50ES-2RS

Brand : SKF

Bore Diameter (mm) : 50

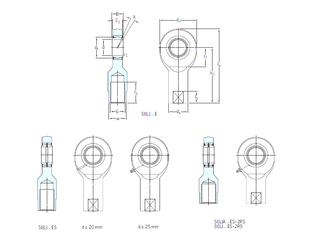

Bearing dimensions and specification in SKF catalogue:

d - 50 mm

d2 - 114 mm

d4 - 70 mm

dk - 66 mm

h1 - 195 mm

l3 min. - 68 mm

l4 max. - 254 mm

l5 - 30 mm

l7 min. - 58 mm

r1 min. - 0,6 mm

B - 35 mm

C1 max - 31 mm

w - 60 Tolerance h14

Thread (G) - M52x3 Tolerance 6H

Angle - 6 °

Weight - 4,5 Kg

Basic dynamic load rating (C) - 156 kN

Basic static load rating (C0) - 270 kN
