Radial spherical plain bearings SIL45ES-2RS

Bearing number : SIL45ES-2RS

Brand : SKF

Bore Diameter (mm) : 45

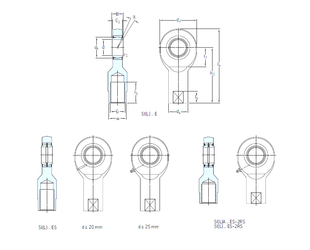

Bearing dimensions and specification in SKF catalogue:

d - 45 mm

d2 - 104 mm

d4 - 65 mm

dk - 60 mm

h1 - 165 mm

l3 min. - 65 mm

l4 max. - 219 mm

l5 - 30 mm

l7 min. - 50 mm

r1 min. - 0,6 mm

B - 32 mm

C1 max - 28 mm

w - 55 Tolerance h14

Thread (G) - M45x3 Tolerance 6H

Angle - 7 °

Weight - 3,2 Kg

Basic dynamic load rating (C) - 127 kN

Basic static load rating (C0) - 224 kN
