Radial spherical plain bearings SIL35ES-2RS

Bearing number : SIL35ES-2RS

Brand : SKF

Bore Diameter (mm) : 35

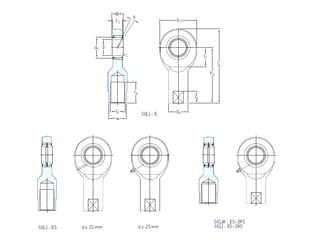

Bearing dimensions and specification in SKF catalogue:

d - 35 mm

d2 - 84 mm

d4 - 49 mm

dk - 47 mm

h1 - 130 mm

l3 min. - 60 mm

l4 max. - 174 mm

l5 - 25 mm

l7 min. - 40 mm

r1 min. - 0,6 mm

B - 25 mm

C1 max - 22 mm

w - 41 Tolerance h14

Thread (G) - M36x3 Tolerance 6H

Angle - 6 °

Weight - 1,4 Kg

Basic dynamic load rating (C) - 80 kN

Basic static load rating (C0) - 134 kN
