Radial spherical plain bearings SIL25C

Bearing number : SIL25C

Brand : SKF

Bore Diameter (mm) : 25

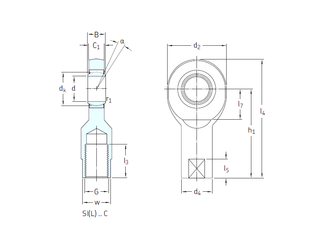

Bearing dimensions and specification in SKF catalogue:

d - 25 mm

d2 - 65 mm

d3 - 36 mm

d4 - 35 mm

dk - 35,5 mm

h1 - 94 mm

l4 max. - 128 mm

l5 - 18 mm

l7 min. - 30 mm

r1 min. - 0,6 mm

B - 20 mm

C1 max - 18 mm

w - 30 Tolerance h14

Thread (G) - M24x2 Tolerance 6H

Angle - 7 °

Weight - 0,65 Kg

Basic dynamic load rating (C) - 51 kN

Basic static load rating (C0) - 90 kN
