Radial spherical plain bearings SIL20C

Bearing number : SIL20C

Brand : SKF

Bore Diameter (mm) : 20

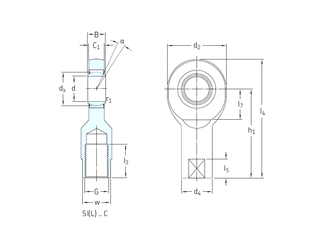

Bearing dimensions and specification in SKF catalogue:

d - 20 mm

d2 - 54 mm

d3 - 30 mm

d4 - 28 mm

dk - 29 mm

h1 - 77 mm

l4 max. - 106 mm

l5 - 16 mm

l7 min. - 24 mm

r1 min. - 0,3 mm

B - 16 mm

C1 max - 13,5 mm

w - 24 Tolerance h14

Thread (G) - M20x1,5 Tolerance 6H

Angle - 9 °

Weight - 0,35 Kg

Basic dynamic load rating (C) - 31,5 kN

Basic static load rating (C0) - 57 kN
