Spherical roller bearings 22215 EK

Bearing number : 22215 EK

Size (mm) : 75x130x31

Brand : SKF

Bore Diameter (mm) : 75

Outer Diameter (mm) : 130

Width (mm) : 31

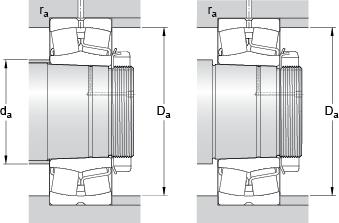

Bearing dimensions and specification in SKF catalogue:

d - 75 mm

D - 130 mm

B - 31 mm

d2 - - 87.8 mm

D1 - - 115 mm

b - 6 mm

K - 3 mm

r1,2 - min. - 1.5 mm

da - min. - 82.2 mm

da - max. - 87 mm

Da - max. - 121 mm

ra - max. - 1.5 mm

Basic dynamic load rating - C - 217 kN

Basic static load rating - C0 - 240 kN

Fatigue load limit - Pu - 26.5 kN

Reference speed - 4800 r/min

Limiting speed - 6300 r/min

Calculation factor - e - 0.22

Calculation factor - Y1 - 3

Calculation factor - Y2 - 4.6

Calculation factor - Y0 - 2.8

Weight - 1.65 kg
