Self-aligning ball bearings 2212E-2RS1TN9

Bearing number : 2212E-2RS1TN9

Size (mm) : 60x110x28

Brand : SKF

Bore Diameter (mm) : 60

Outer Diameter (mm) : 110

Width (mm) : 28

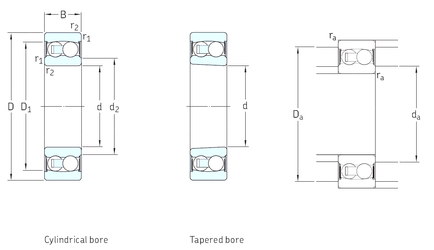

Bearing dimensions and specification in SKF catalogue:

d - 60 mm

D - 110 mm

B - 28 mm

C - 28 mm

d2 - 73,2 mm

r1 min. - 1,5 mm

r2 min. - 1,5 mm

D1 - 97 mm

da min. - 69 mm

da max - 73 mm

Da max. - 101 mm

ra max. - 1,5 mm

Weight - 1,05 Kg

Basic dynamic load rating (C) - 31,2 kN

Basic static load rating (C0) - 12,2 kN

Fatigue load limit (Pu) - 0,62

Limiting speed - 3800 r/min

Calculation factor (e) - 0,19

Calculation factor (kr) - 0,045

Calculation factor (Y0) - 3,6

Calculation factor (Y1) - 3,3

Calculation factor (Y2) - 5,1
