Self-aligning ball bearings 2206ETN9

Bearing number : 2206ETN9

Size (mm) : 30x62x20

Brand : SKF

Bore Diameter (mm) : 30

Outer Diameter (mm) : 62

Width (mm) : 20

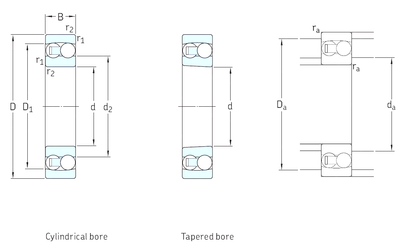

Bearing dimensions and specification in SKF catalogue:

d - 30 mm

D - 62 mm

B - 20 mm

C - 20 mm

d2 - 38,8 mm

r1 min. - 1 mm

r2 min. - 1 mm

D1 - 55 mm

da min. - 35,6 mm

Da max. - 56,4 mm

ra max. - 1 mm

Weight - 0,26 Kg

Basic dynamic load rating (C) - 23,8 kN

Basic static load rating (C0) - 6,7 kN

Fatigue load limit (Pu) - 0,35

Reference speed - 22000 r/min

Limiting speed - 15000 r/min

Calculation factor (e) - 0,33

Calculation factor (kr) - 0,045

Calculation factor (Y0) - 2

Calculation factor (Y1) - 1,9

Calculation factor (Y2) - 3
