Self-aligning ball bearings 2203ETN9

Bearing number : 2203ETN9

Size (mm) : 17x40x16

Brand : SKF

Bore Diameter (mm) : 17

Outer Diameter (mm) : 40

Width (mm) : 16

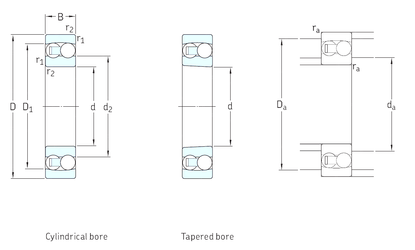

Bearing dimensions and specification in SKF catalogue:

d - 17 mm

D - 40 mm

B - 16 mm

C - 16 mm

d2 - 23,8 mm

r1 min. - 0,6 mm

r2 min. - 0,6 mm

D1 - 34,1 mm

da min. - 21,2 mm

Da max. - 35,8 mm

ra max. - 0,6 mm

Weight - 0,088 Kg

Basic dynamic load rating (C) - 10,6 kN

Basic static load rating (C0) - 2,55 kN

Fatigue load limit (Pu) - 0,14

Reference speed - 34000 r/min

Limiting speed - 24000 r/min

Calculation factor (e) - 0,43

Calculation factor (kr) - 0,045

Calculation factor (Y0) - 1,6

Calculation factor (Y1) - 1,5

Calculation factor (Y2) - 2,3
