Deep groove ball bearings 220

Bearing number : 220

Size (mm) : 100x180x34

Brand : SKF

Bore Diameter (mm) : 100

Outer Diameter (mm) : 180

Width (mm) : 34

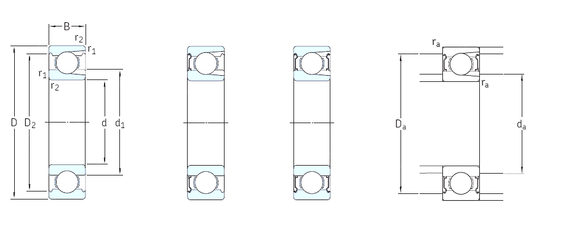

Bearing dimensions and specification in SKF catalogue:

d - 100 mm

D - 180 mm

B - 34 mm

C - 34 mm

d1 - 123 mm

r1 min. - 2,1 mm

r2 min. - 2,1 mm

D2 - 160 mm

da min. - 112 mm

da max - 122 mm

Da max. - 168 mm

ra max. - 2 mm

Weight - 3,45 Kg

Basic dynamic load rating (C) - 134 kN

Basic static load rating (C0) - 140 kN

Fatigue load limit (Pu) - 5

Reference speed - 6300 r/min

Limiting speed - 4000 r/min

Calculation factor (kr) - 0,04
