Deep groove ball bearings 217-2Z

Bearing number : 217-2Z

Size (mm) : 85x150x28

Brand : SKF

Bore Diameter (mm) : 85

Outer Diameter (mm) : 150

Width (mm) : 28

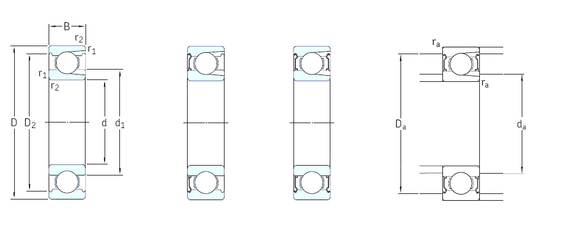

Bearing dimensions and specification in SKF catalogue:

d - 85 mm

D - 150 mm

B - 28 mm

C - 28 mm

d1 - 104 mm

r1 min. - 2 mm

r2 min. - 2 mm

D2 - 135 mm

da min. - 96 mm

da max - 96,9 mm

Da max. - 139 mm

ra max. - 2 mm

Weight - 1,95 Kg

Basic dynamic load rating (C) - 96,8 kN

Basic static load rating (C0) - 100 kN

Fatigue load limit (Pu) - 3,9

Reference speed - 7500 r/min

Limiting speed - 4800 r/min

Calculation factor (kr) - 0,04
