Bearing 21320 EK Bearing 21320 EK

Spherical roller bearings 21320 EK

Bearing number : 21320 EK

Size (mm) : 100x215x47

Brand : SKF

Bore Diameter (mm) : 100

Outer Diameter (mm) : 215

Width (mm) : 47

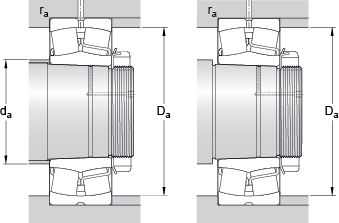

Bearing dimensions and specification in SKF catalogue:


d - 100 mm

D - 215 mm

B - 47 mm

d2 - - 118 mm

D1 - - 159 mm

b - 8.3 mm

K - 4.5 mm

r1,2 - min. - 3 mm

da - min. - 108 mm

da - max. - 118 mm

Da - max. - 201 mm

ra - max. - 2.5 mm

Basic dynamic load rating - C - 433 kN

Basic static load rating - C0 - 490 kN

Fatigue load limit - Pu - 49 kN

Reference speed - 3400 r/min

Limiting speed - 4500 r/min

Calculation factor - e - 0.24

Calculation factor - Y1 - 2.8

Calculation factor - Y2 - 4.2

Calculation factor - Y0 - 2.8

Weight - 8.5 kg
