Deep groove ball bearings, single row, with filling slots 212 NR

Bearing number : 212 NR

Size (mm) : 60x110x22

Brand : SKF

Bore Diameter (mm) : 60

Outer Diameter (mm) : 110

Width (mm) : 22

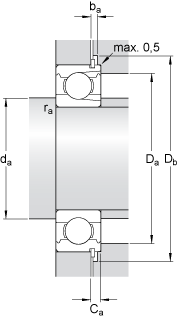

Bearing dimensions and specification in SKF catalogue:

d - 60 mm

D - 110 mm

B - 22 mm

d1 - - 75.5 mm

D2 - - 98 mm

D3 - 106.81 mm

D4 - 116.6 mm

b - 2.7 mm

C - 3.28 mm

f - 2.46 mm

r0 - 0.6 mm

r1,2 - min. - 1.5 mm

da - min. - 69 mm

Da - max. - 101 mm

Db - min. - 118 mm

ba - min. - 3 mm

Ca - max. - 5.74 mm

ra - max. - 1.5 mm

Basic dynamic load rating - C - 56.1 kN

Basic static load rating - C0 - 50 kN

Fatigue load limit - Pu - 2.1 kN

Reference speed - 11000 r/min

Limiting speed - 6700 r/min

Calculation factor minimum radial load - kr - 0.04

Mass bearing - 0.85 kg

Snap ring - SP 110
