Deep groove ball bearings 208-ZNR

Bearing number : 208-ZNR

Size (mm) : 40x80x18

Brand : SKF

Bore Diameter (mm) : 40

Outer Diameter (mm) : 80

Width (mm) : 18

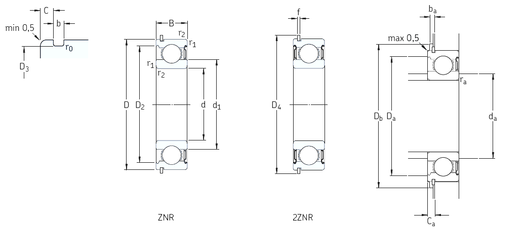

Bearing dimensions and specification in SKF catalogue:

d - 40 mm

D - 80 mm

B - 18 mm

C - 18 mm

b - 1,9 mm

d1 - 52,6 mm

f - 1,7 mm

r0 max. - 0,6 mm

r1 min. - 1,1 mm

r2 min. - 1,1 mm

C - 3,28 mm

D2 - 69,8 mm

D3 - 76,81 mm

D4 - 86,6 mm

ba min. - 2,2 mm

Ca max. - 4,98 mm

da min. - 47 mm

da max - 52,5 mm

Da max. - 73 mm

Db min. - 88 mm

ra max. - 1 mm

Weight - 0,39 Kg

Basic dynamic load rating (C) - 33,6 kN

Basic static load rating (C0) - 27 kN

Fatigue load limit (Pu) - 1,16

Reference speed - 15000 r/min

Limiting speed - 9500 r/min

Calculation factor (kr) - 0,04
