Bearing 207-ZNR

Deep groove ball bearings 207-ZNR

Bearing number : 207-ZNR

Size (mm) : 35x72x17

Brand : SKF

Bore Diameter (mm) : 35

Outer Diameter (mm) : 72

Width (mm) : 17

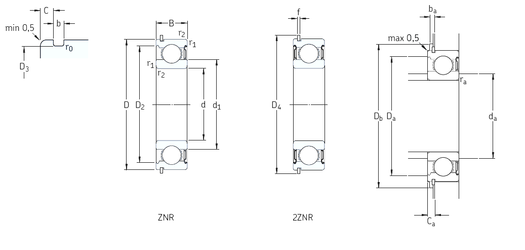

Bearing dimensions and specification in SKF catalogue:


d - 35 mm

D - 72 mm

B - 17 mm

C - 17 mm

b - 1,9 mm

d1 - 46,9 mm

f - 1,7 mm

r0 max. - 0,6 mm

r1 min. - 1,1 mm

r2 min. - 1,1 mm

C - 3,28 mm

D2 - 62,7 mm

D3 - 68,81 mm

D4 - 78,6 mm

ba min. - 2,2 mm

Ca max. - 4,98 mm

da min. - 42 mm

da max - 46,8 mm

Da max. - 65 mm

Db min. - 80 mm

ra max. - 1 mm

Weight - 0,31 Kg

Basic dynamic load rating (C) - 27,5 kN

Basic static load rating (C0) - 22 kN

Fatigue load limit (Pu) - 0,93

Reference speed - 17000 r/min

Limiting speed - 10000 r/min

Calculation factor (kr) - 0,04
