Tapered roller bearings 1982F/1924A/QVQ519

Bearing number : 1982F/1924A/QVQ519

Size (mm) : 27.5x57.15x19.845

Brand : SKF

Bore Diameter (mm) : 27,5

Outer Diameter (mm) : 57,15

Width (mm) : 19,845

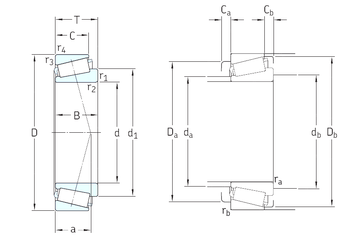

Bearing dimensions and specification in SKF catalogue:

d - 27,5 mm

D - 57,15 mm

T - 19,845 mm

B - 19,355 mm

C - 15,875 mm

a - 14 mm

d1 - 42 mm

r1 min. - 2,5 mm

r2 min. - 2,5 mm

r3 min. - 0,8 mm

r4 min. - 0,8 mm

Ca min. - 3 mm

Cb min. - 3,5 mm

da max - 35 mm

Da min - 49 mm

Da max. - 52 mm

db min - 36,5 mm

Db min. - 54 mm

ra max. - 2,5 mm

rb max. - 0,8 mm

Weight - 0,22 Kg

Basic dynamic load rating (C) - 45,7 kN

Basic static load rating (C0) - 51 kN

Fatigue load limit (Pu) - 5,6

Reference speed - 9000 r/min

Limiting speed - 13000 r/min

Calculation factor (e) - 0,54

Calculation factor (Y) - 1,1

Calculation factor (Y0) - 1
