Deep groove ball bearings 16008

Bearing number : 16008

Size (mm) : 40x68x9

Brand : SKF

Bore Diameter (mm) : 40

Outer Diameter (mm) : 68

Width (mm) : 9

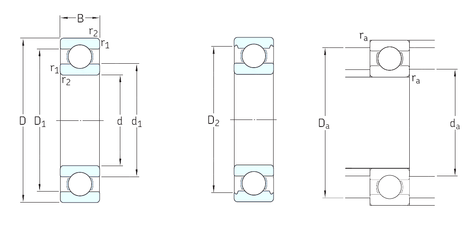

Bearing dimensions and specification in SKF catalogue:

d - 40 mm

D - 68 mm

B - 9 mm

C - 9 mm

d1 - 49,4 mm

r1 min. - 0,3 mm

r2 min. - 0,3 mm

D1 - 58,6 mm

D2 - – mm

da min. - 42 mm

Da max. - 66 mm

rc max. - 0,3 mm

Weight - 0,13 Kg

Basic dynamic load rating (C) - 13,8 kN

Basic static load rating (C0) - 10,2 kN

Fatigue load limit (Pu) - 0,44

Reference speed - 22000 r/min

Limiting speed - 14000 r/min

Calculation factor (f0) - 16

Calculation factor (kr) - 0,02
