Deep groove ball bearings 16002

Bearing number : 16002

Size (mm) : 15x32x8

Brand : SKF

Bore Diameter (mm) : 15

Outer Diameter (mm) : 32

Width (mm) : 8

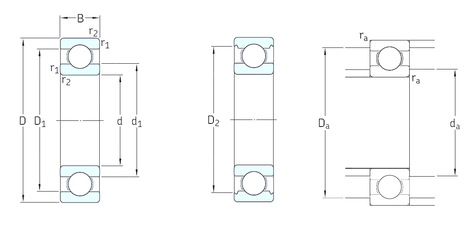

Bearing dimensions and specification in SKF catalogue:

d - 15 mm

D - 32 mm

B - 8 mm

C - 8 mm

d1 - 20,5 mm

r1 min. - 0,3 mm

r2 min. - 0,3 mm

D1 - 26,7 mm

D2 - 28,2 mm

da min. - 17 mm

Da max. - 30 mm

rc max. - 0,3 mm

Weight - 0,03 Kg

Basic dynamic load rating (C) - 5,85 kN

Basic static load rating (C0) - 2,85 kN

Fatigue load limit (Pu) - 0,12

Reference speed - 50000 r/min

Limiting speed - 32000 r/min

Calculation factor (f0) - 14

Calculation factor (kr) - 0,02
