Self-aligning ball bearings 11208TN9

Bearing number : 11208TN9

Size (mm) : 40x80x56

Brand : SKF

Bore Diameter (mm) : 40

Outer Diameter (mm) : 80

Width (mm) : 56

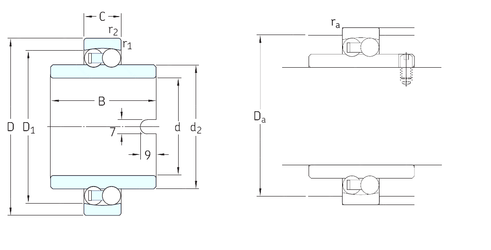

Bearing dimensions and specification in SKF catalogue:

d - 40 mm

D - 80 mm

B - 56 mm

C - 18 mm

d2 - 54 mm

r1 min. - 1,1 mm

r2 min. - 1,1 mm

D1 - 68,8 mm

Da max. - 73 mm

ra max. - 1,1 mm

Weight - 0,72 Kg

Basic dynamic load rating (C) - 19 kN

Basic static load rating (C0) - 6,55 kN

Fatigue load limit (Pu) - 0,335

Limiting speed - 5000 r/min

Calculation factor (e) - 0,22

Calculation factor (kr) - 0,04

Calculation factor (Y0) - 2,8

Calculation factor (Y1) - 2,9

Calculation factor (Y2) - 4,5
