Tapered roller bearings 09074/09195/QVQ494

Bearing number : 09074/09195/QVQ494

Size (mm) : 49,225x19.05x19,845

Brand : SKF

Bore Diameter (mm) : 49,225

Outer Diameter (mm) : 19.05

Width (mm) : 19,845

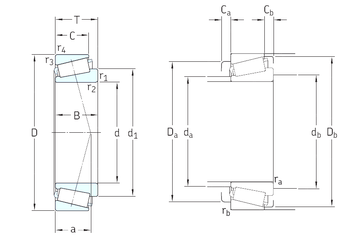

Bearing dimensions and specification in SKF catalogue:

d - 19.05 mm

D - 49,225 mm

T - 19,845 mm

B - 21,539 mm

C - 14,288 mm

a - 10 mm

d1 - 32,3 mm

r1 min. - 1,5 mm

r2 min. - 1,5 mm

r3 min. - 1,3 mm

r4 min. - 1,3 mm

Ca min. - 5 mm

Cb min. - 5,5 mm

da max - 26 mm

Da min - 41 mm

Da max. - 42,5 mm

db min - 26 mm

Db min. - 44 mm

ra max. - 1,5 mm

rb max. - 1,3 mm

Weight - 0,19 Kg

Basic dynamic load rating (C) - 39,1 kN

Basic static load rating (C0) - 40 kN

Fatigue load limit (Pu) - 4,3

Reference speed - 11000 r/min

Limiting speed - 17000 r/min

Calculation factor (e) - 0,27

Calculation factor (Y) - 2,2

Calculation factor (Y0) - 1,3
