Bearing 22313 EK/VA405 Bearing 22313 EK/VA405

Spherical roller bearings 22313 EK/VA405

Bearing number : 22313 EK/VA405

Size (mm) : 65x140x48

Brand : SKF

Bore Diameter (mm) : 65

Outer Diameter (mm) : 140

Width (mm) : 48

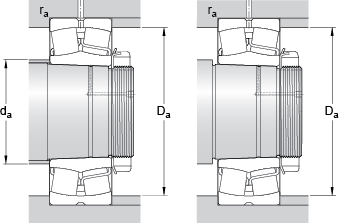

Bearing dimensions and specification in SKF catalogue:


d - 65 mm

D - 140 mm

B - 48 mm

d2 - - 81.6 mm

D1 - - 118 mm

b - 8.3 mm

K - 4.5 mm

r1,2 - min. - 2.1 mm

da - min. - 73 mm

Da - max. - 128 mm

ra - max. - 2 mm

Basic dynamic load rating - C - 357 kN

Basic static load rating - C0 - 360 kN

Fatigue load limit - Pu - 38 kN

Reference speed - 3800 r/min

Limiting speed - 5000 r/min

Calculation factor - e - 0.35

Calculation factor - Y1 - 1.9

Calculation factor - Y2 - 2.9

Calculation factor - Y0 - 1.8

Permissible rotational acceleration (oil lubrication) - 677 g [m/s]

Permissible linear acceleration (oil lubrication) - 235 g [m/s]

Weight - 3.65 kg
