Spherical roller bearings 22240 CCK/W33

Bearing number : 22240 CCK/W33

Size (mm) : 200x360x98

Brand : SKF

Bore Diameter (mm) : 200

Outer Diameter (mm) : 360

Width (mm) : 98

Bearing dimensions and specification in SKF catalogue:

d - 200 mm

D - 360 mm

B - 98 mm

d2 - - 238 mm

D1 - - 313 mm

b - 16.7 mm

K - 9 mm

r1,2 - min. - 4 mm

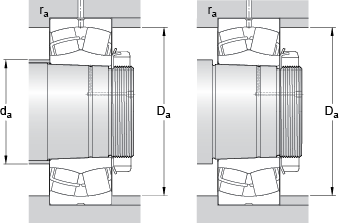

da - min. - 209 mm

da - max. - 238 mm

Da - max. - 343 mm

ra - max. - 3 mm

Basic dynamic load rating - C - 1526 kN

Basic static load rating - C0 - 1930 kN

Fatigue load limit - Pu - 166 kN

Reference speed - 1600 r/min

Limiting speed - 2200 r/min

Calculation factor - e - 0.26

Calculation factor - Y1 - 2.6

Calculation factor - Y2 - 3.9

Calculation factor - Y0 - 2.5

Weight - 42.5 kg
